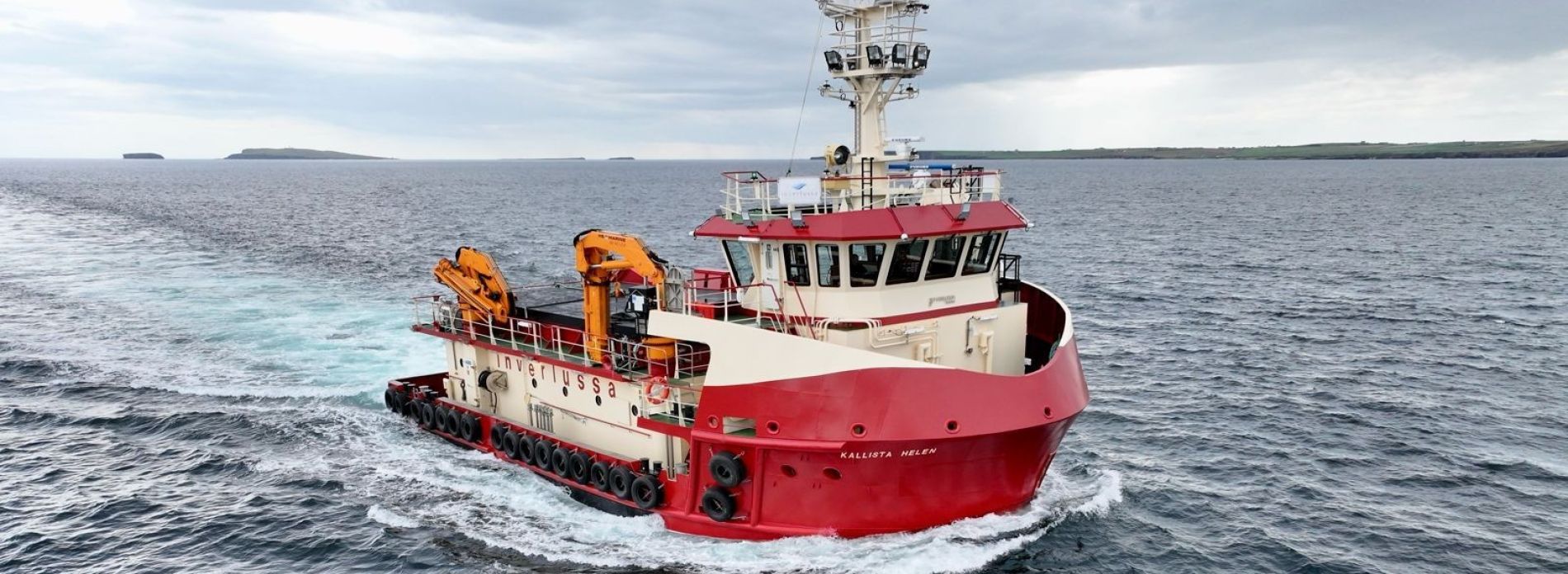

KALLISTA HELEN

  • 26m Twin Screw Fish Feed Delivery Vessel - MCA Cat 1 - 150 miles offshore
  • Capacity for up to 200T
  • Self-loading and discharge
  • Fuel and water transfer

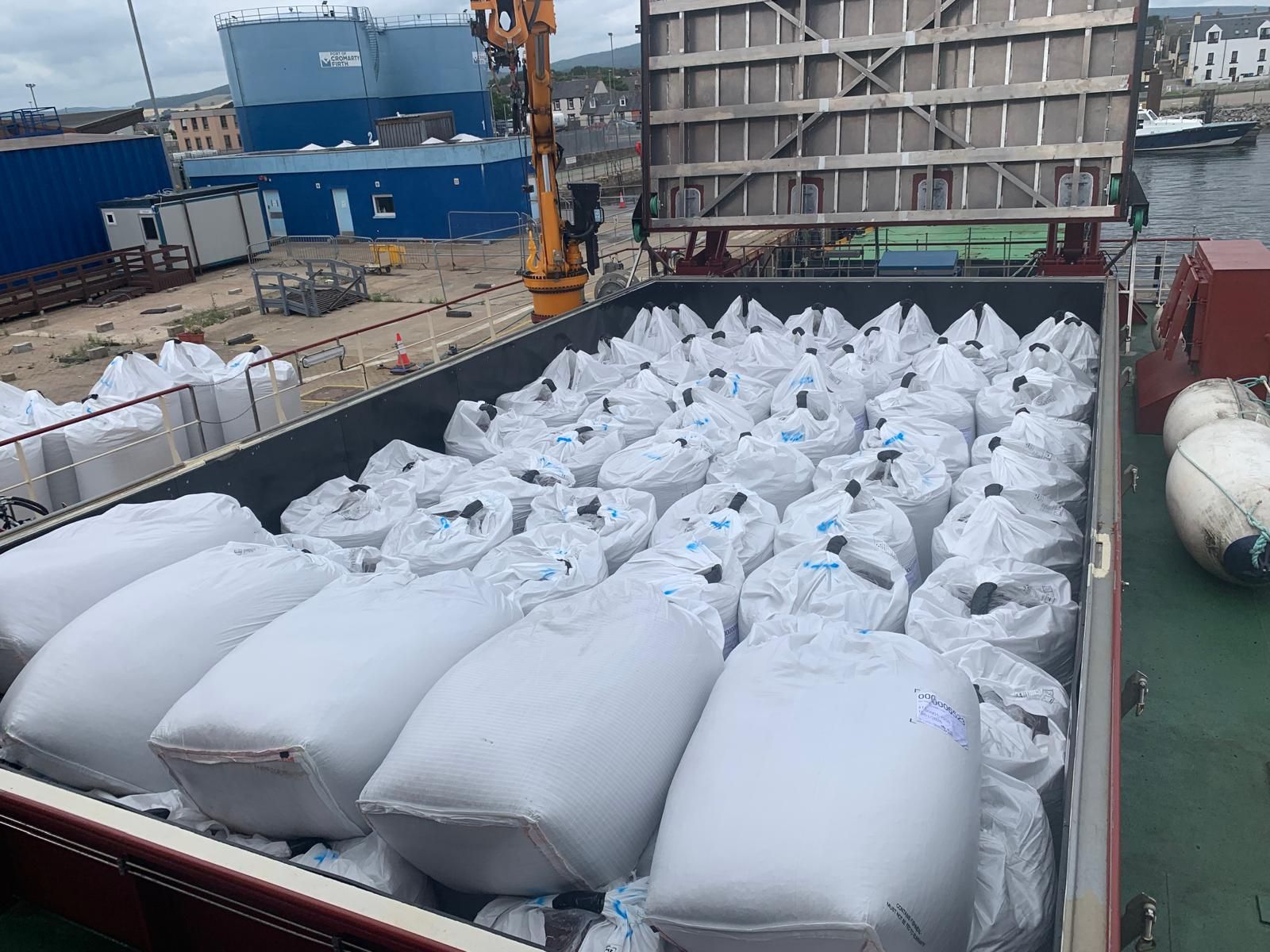

  • Enclosed hold for all weathers with self-opening hatches

GALLERY

    SPECIFICATION

    GENERAL
    Type of vessel
    26 m Fish Feed Delivery Vessel
    Class
    MCA CAT 1; 150 miles offshore
    Yard
    Ferguson Marine Engineering, Glasgow
    Year of build
    Delivery July 2020
    DIMENSIONS
    LOA
    26.5 m
    Beam
    12 m
    Depth
    3.5 m
    Draft (approx)
    2.2 m
    TANK CAPACITIES
    Fuel
    56 m3
    Fresh Water
    40 m3
    Transfer pumps
    32 m3/hr
    Ballast
    156 m3
    PERFORMANCE
    Speed
    8.5 kts
    Bollard pull
    18 ton (TBC)
    PROPULSION SYSTEM / AUX EQUIPMENT
    Main engines
    2 x Caterpillar C32
    Total power
    1300 hp
    Propellers
    Twin screw, fixed pitch 1500 mm
    props in nozzle with high lift rudders
    Bow thruster
    270 hp
    Stern thruster
    120 hp
    Generator sets
    1 x X32 650 kW
    2 x C4.4 50 kW
    1 x C7 118 kW
    DECK LAYOUT
    Deck crane fwd
    40 ton/m; max outreach 15.1 m with remote
    Deck crane mid
    40 ton/m; max outreach 15.1 m with remote
    Capstans
    4 x 5 t
    Hold cargo
    200 ton
    ACCOMMODATION
    No. of persons
    12
    Heated living space
    Yes
    2 berth cabins with private shower/toilet
    6
    Changing / drying area
    Yes, with toilet
    and laundry
    Separate galley / messroom / lounge
    Yes
