NAOMI JENNIFER

  • 25 m Aquaculture Service Vessel
  • Latest SHM deck mooring equipment
  • Capacity for heavy net changing and general heavy lifting
  • Bollard pull 21.8 T
  • Fuel and water transfer
  • Hybrid battery technology

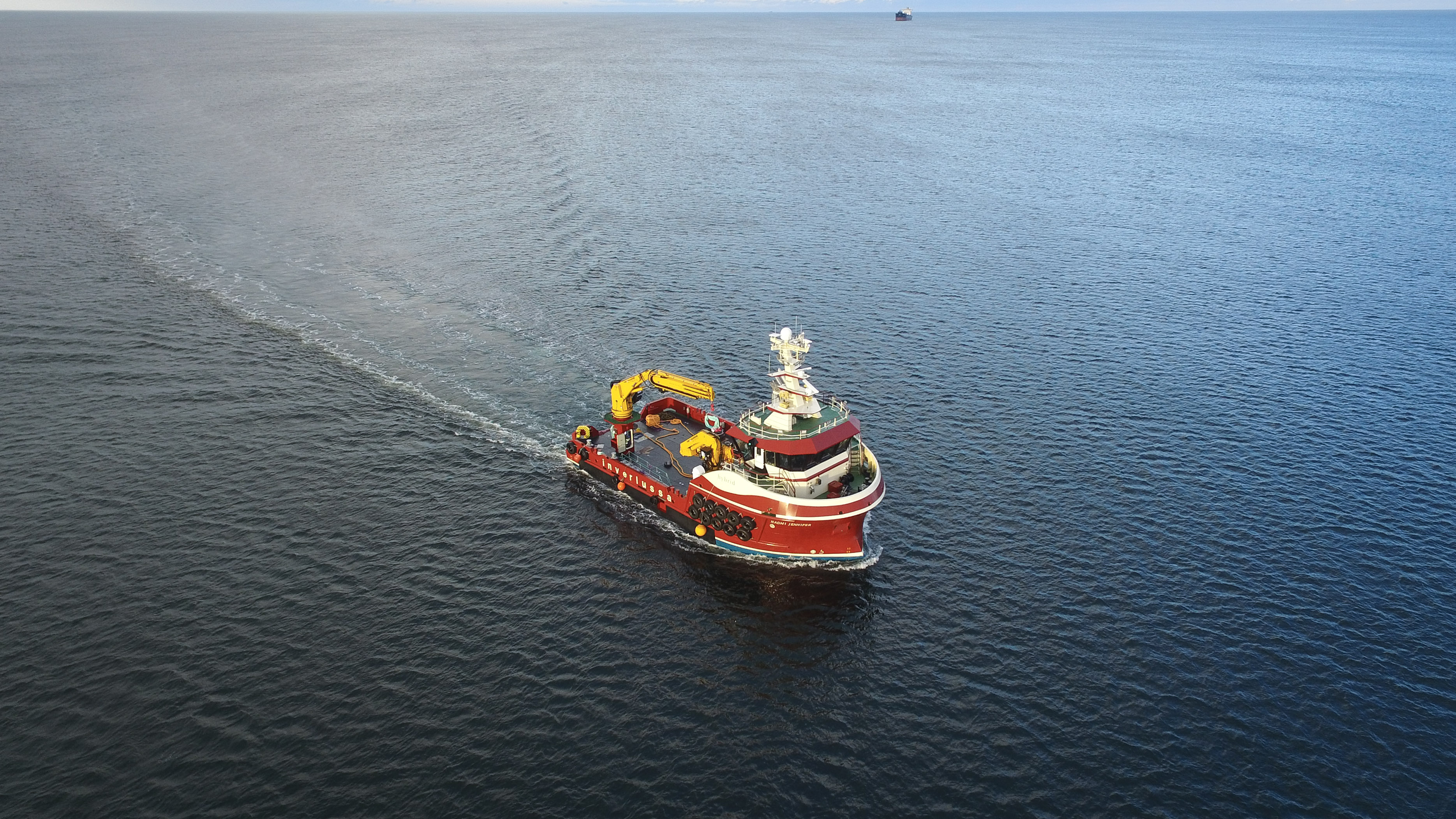

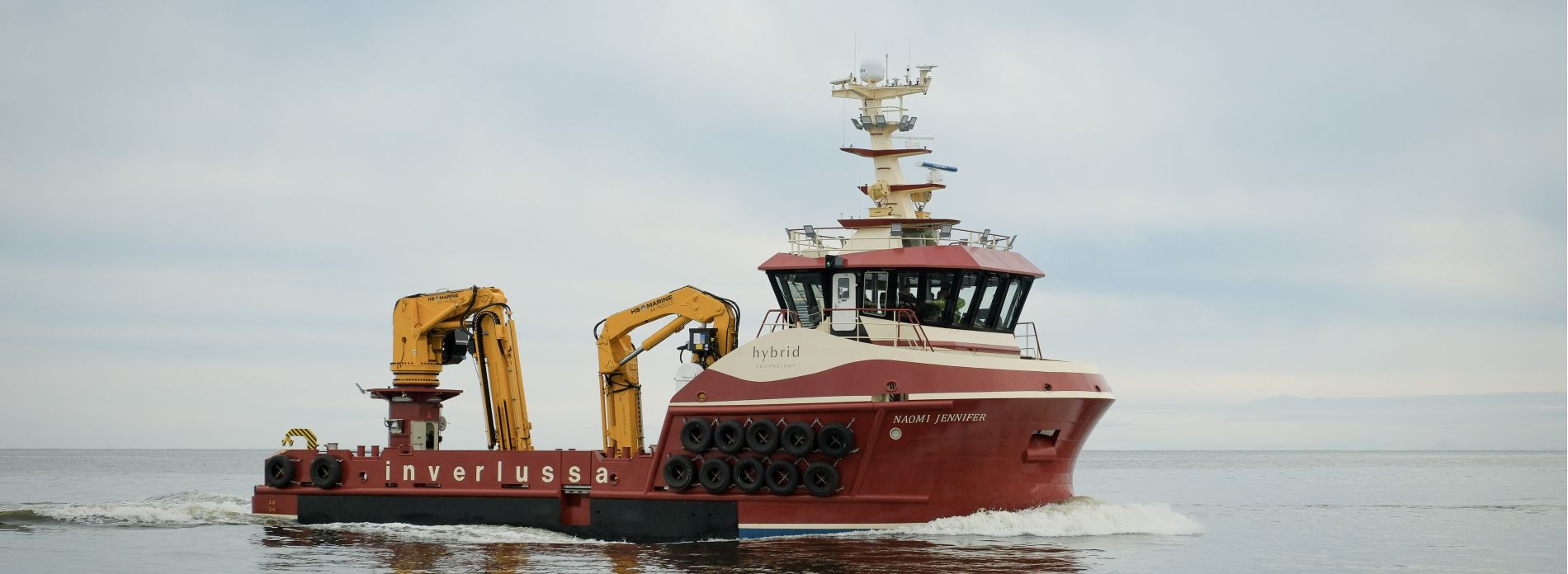

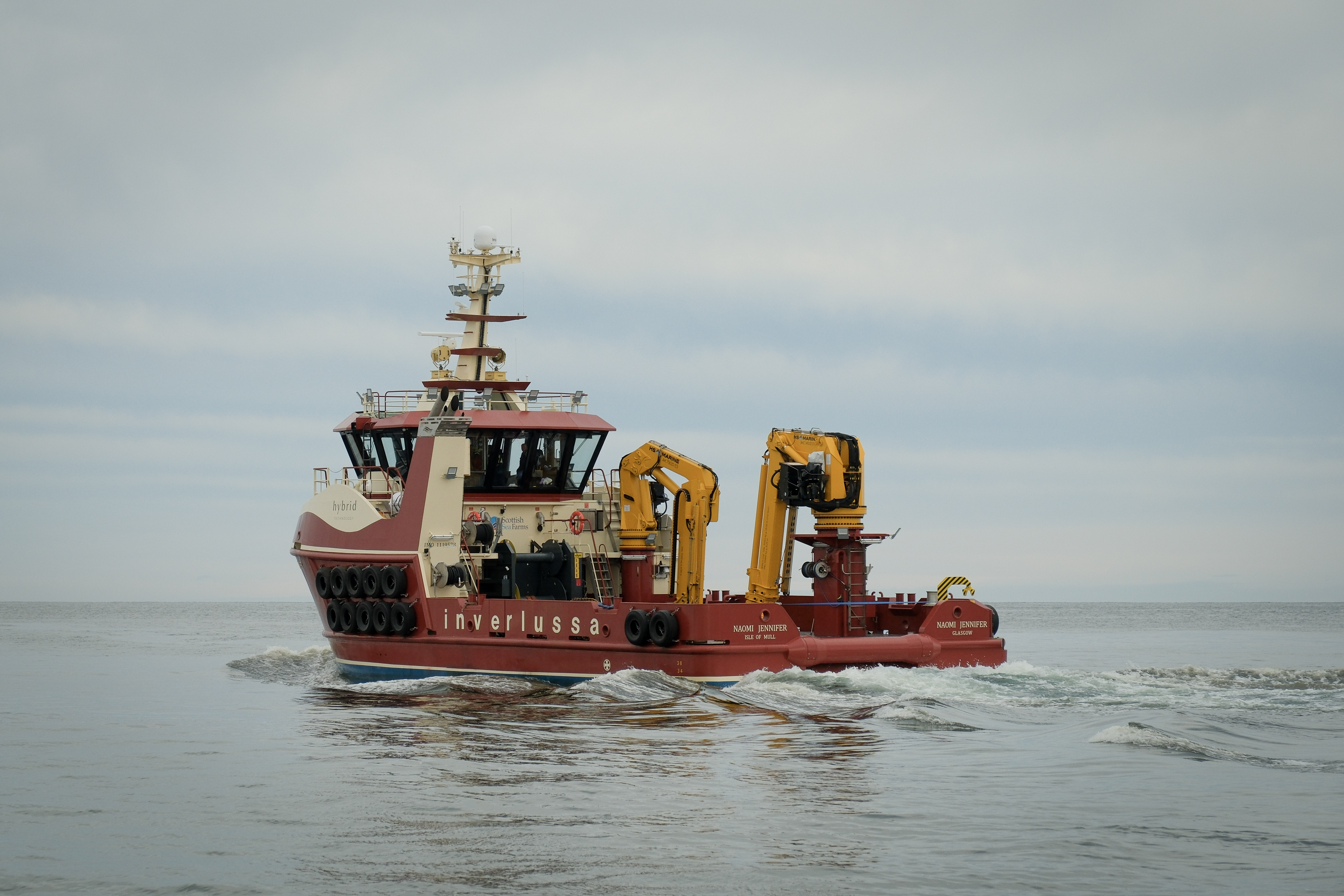

GALLERY

    SPECIFICATION

    GENERAL
    Type of vessel
    25 m Aquaculture Service Vessel
    Class
    MCA Workboat Code 3 (UK CAT 1)
    Design
    Macduff Shipyard
    Year of build
    2025
    DIMENSIONS
    LOA
    25 m
    Beam
    10.5 m
    Depth
    3.6 m
    Draft (approx)
    3.5 m
    TANK CAPACITIES
    Fuel
    54 m3
    Fresh Water
    37 m3
    Transfer pumps
    10 m3/hr
    Ballast
    60 m3
    PERFORMANCE
    Speed
    max. 10 kts
    Bollard pull
    21.8 T
    Dangerous Goods for Carriage of Peroxide
    Yes
    PROPULSION SYSTEM
    Main propulsion
    2 x Cat C18
    Hydraulic Engine
    1 x Cat12
    Generators
    1 x 118kw & 1 x 36kw
    Hybrid Battery
    130kwh
    AUX EQUIPMENT
    Bow thruster
    170 kW
    Stern thruster
    105 kW
    ROV & Store Room
    Yes
    DECK LAYOUT
    Deck crane stbd fwd
    AK79/20 E5 max lift 1.8 T @ 20 m
    Deck crane stbd aft
    AK145/21.5 HE4 max lift 3 T@ 21.5 m
    SHM Deck winches
    1 x 25 T main winch with 62 T brake
    1 x 10 T upper winch with 25 T brake
    SHM Mooring Lock
    25 T on hydraulic rail
    SHM Chain Lock & Towing Pins
    40T shark jaw chain lock
    Capstans
    3 x 8T
    ACCOMMODATION
    No. of persons
    5
    Berth ensuite cabins
    5 x 1
    Heated living space
    Yes
    Laundry facility
    Yes
    Changing / drying area
    Yes, with toilet
    Dedicated galley, combined mess/dayroom
    Yes
