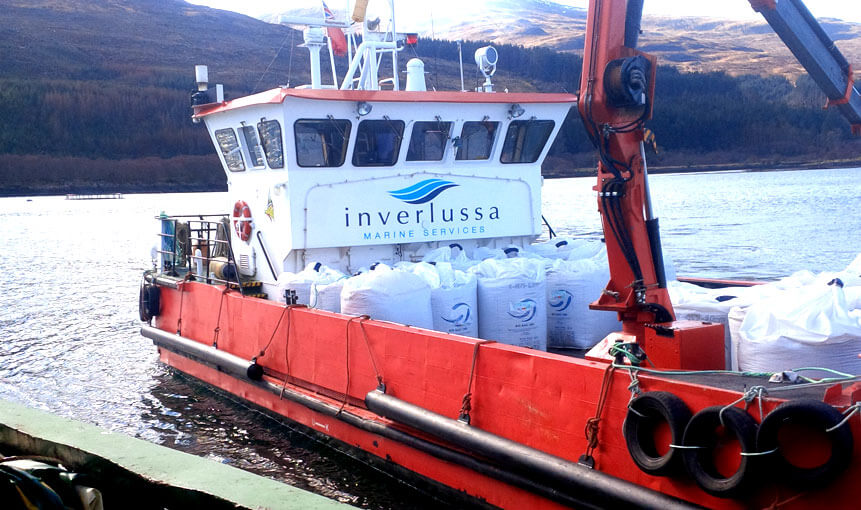

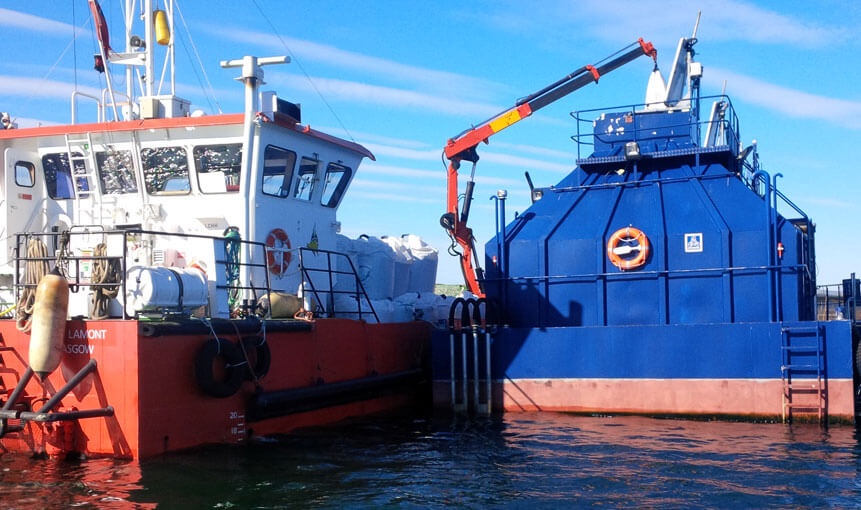

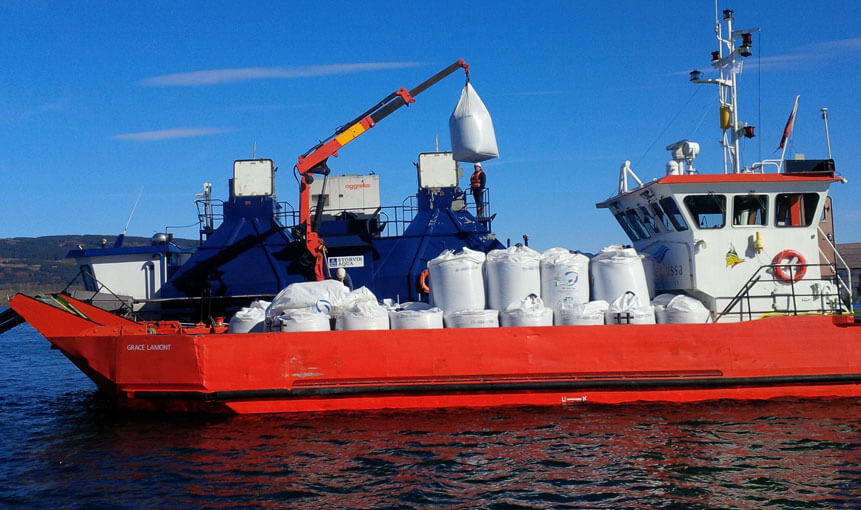

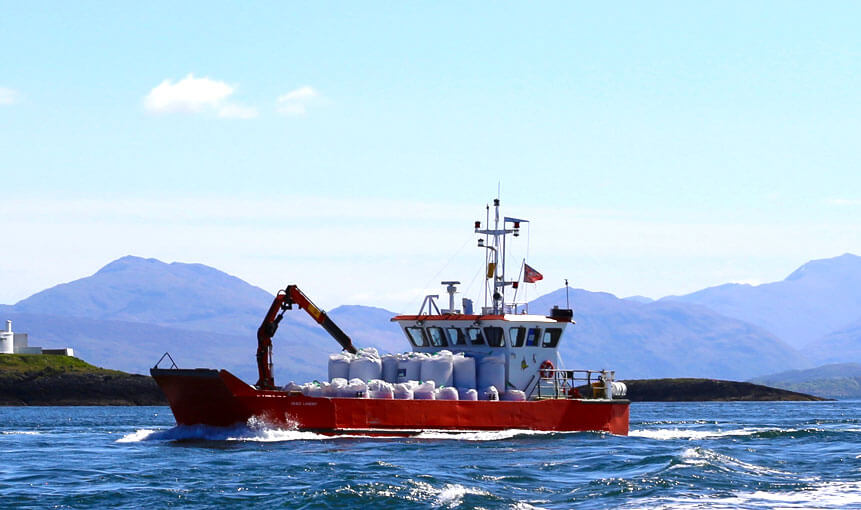

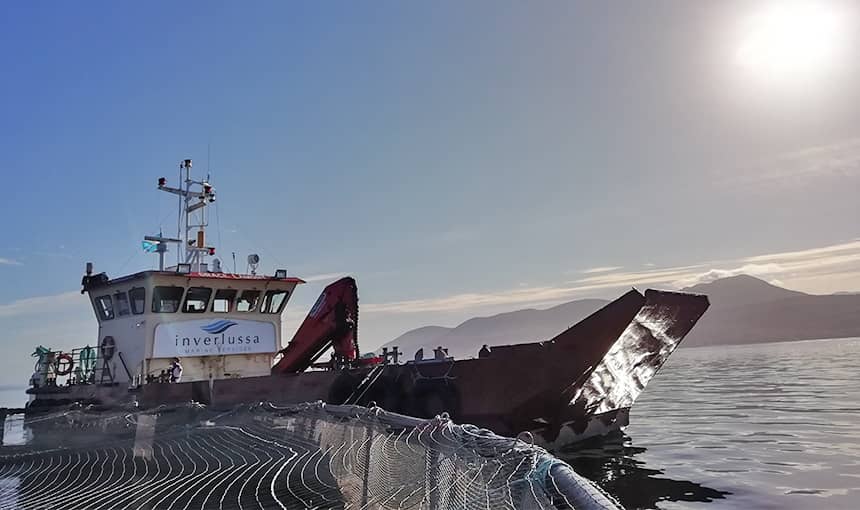

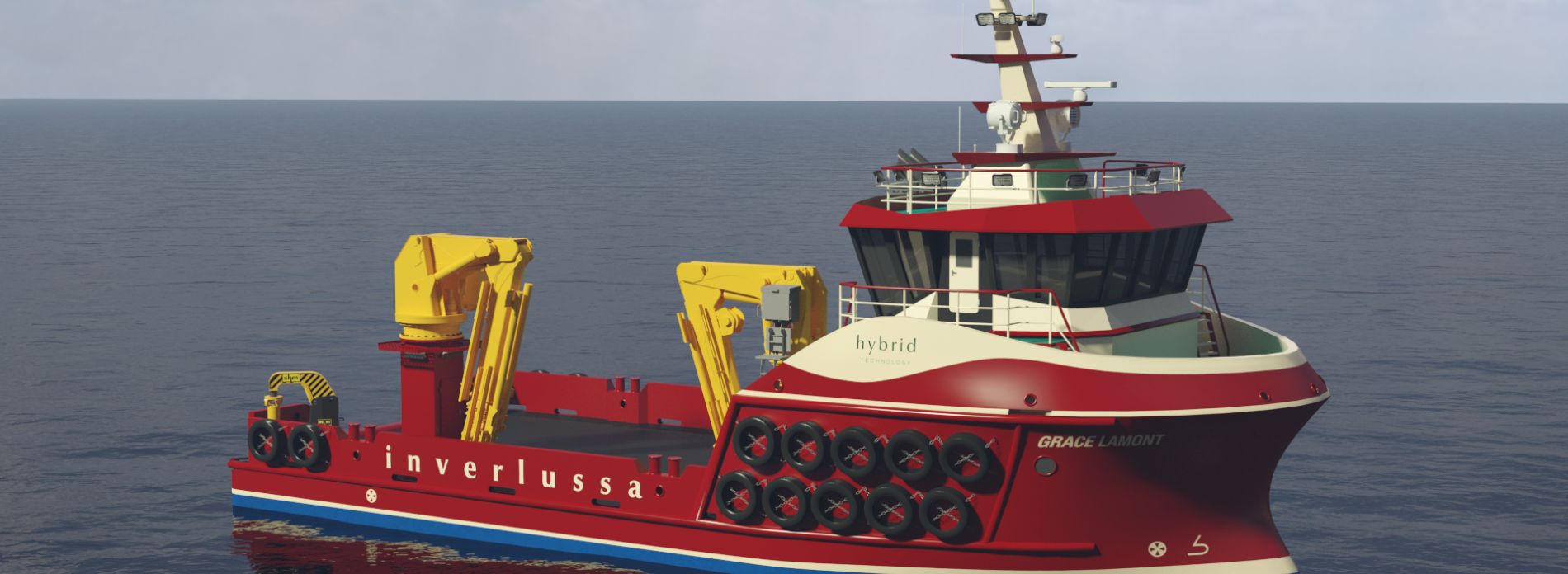

GRACE LAMONT

  • 25m Aquaculture Service Vessel
  • Latest SHM deck mooring equipment
  • Capacity for heavy net changing and general heavy lifting
  • Bollard pull 21.8ton
  • Fuel and water transfer
  • Hybrid battery technology

SPECIFICATION

GENERAL
Type of vessel
25m Aquaculture Service Vessel
Class
MCA Workboat Code 3 (UK CAT 1)
Design
Macduff Shipyard
Year of build
2027
DIMENSIONS
LOA
25m
Beam
10.5m
Depth
3.6m
Draft (approx)
3.5m
TANK CAPACITIES
Fuel
54m3
Fraser Water
37m3
Transfer Pumps
10 m3/hr
Ballast
60m3
PERFORMANCE
Speed
max. 10 kts
Bollard Pull
21.8 ton
Dangerous Goods for Carriage of Peroxide
Yes

Headline

PROPULSION SYSTEM
Main Propulsion
2 x Cat C18
Hydraulic Engine
1 x Cat12
Generators
1 x 118kw & 1 x 36kw
Hybrid Battery
130kwh
AUX EQUIPMENT
Bow thruster
170kW
Stern thruster
105kW
ROV & Store Room
Yes
DECK LAYOUT

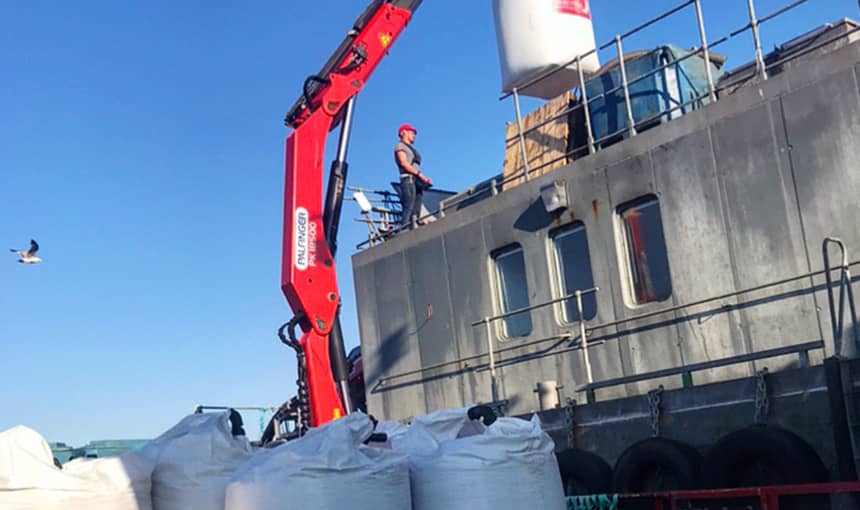

Deck Crane stbd fwd
AK79/20 E5 max lift 1.8T @ 20m
Deck Crane stbd aft
AK145/21.5 HE4 max lift 3T @ 21.5m
SHM Deck Winches
1 x 25T main winch with 62T brake
1 x 10T upper winch with 25T brake
SHM Mooring Lock
25T on hydraulic rail
SHM Chain Lock & Towing Pins
40T shark jaw chain lock
Capstans
3 x 8T
ACCOMMODATION
No. of persons
5
Berth ensuite cabins
5 x 1
Heated living space
Yes
Laundry facility
Yes
Changing / drying area
Yes, with toilet
Dedicated galley, combined mess/dayroom
Yes
